MEC Pumps
Versions
Version M
With gearbox to be driven by splined shaft at 540 rpm
Version P
Smooth Cylindrical shaft with key
Version D
Driven by splined shaft at 1000 rpm
Version HM
With gearbox to be driven by hydraulic motor

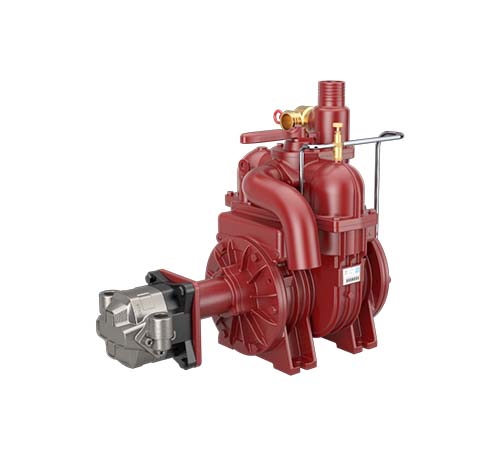

Version H
Driven by hydraulic motor
Technical data
| Product | Geometrical capacity | Max rpm |
Max abs |
Max vacuum % (inHg) |
Max continuous vacuum % (inHg) |
Power at max vacuum kW (HP) |
Weight kg | Brochure | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| m³/h | l/min | cfm | M | P | D | H | HM | M | P | D | H | HM | ||||||
| MEC 1000 | 75,6 | 1260 | 45 | 600 | 1400 | - | 1400 | - | 2,5 (36) | 89% (26,3”) | 60% (18”) | 3,5 (4,7) | 40 | 34 | - | 48 | - | Open |
| MEC 1600 | 118,8 | 1980 | 70 | 600 | 1400 | - | 1400 | - | 2,5 (36) | 89% (26,3”) | 60% (18”) | 4,5 (6) | 48 | 42 | - | 56 | - | Open |
| MEC 2000 | 165 | 2750 | 97 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 91% (27,0”) | 60% (18”) | 5,5 (7,3) | 75 | 65 | 65 | 81 | 77 | Open |
| MEC 3000 | 216 | 3600 | 127 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 92% (27,2”) | 60% (18”) | 7 (9,4) | 86 | 75 | 77 | 92 | 89 | Open |
| MEC 4000 | 261 | 4350 | 154 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 94% (28,0”) | 60% (18”) | 9 (12,6) | 97 | 85 | 90 | 116 | 102 | Open |
| MEC 5000 | 369 | 6150 | 217 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 94% (28,0”) | 60% (18”) | 11 (14,7) | 127 | 120 | 121 | 136 | 132 | Open |
| MEC 6500 | 420 | 7000 | 247 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 94% (28,0”) | 60% (18”) | 12,5 (16,7) | 142 | 129 | 130 | 154 | 150 | Open |
| MEC 8000 | 486 | 8100 | 286 | 600 | 1400 | 1400 | 1400 | 1400 | 2,5 (36) | 94% (28,0”) | 60% (18”) | 16 (21,4) | 157 | 140 | 141 | 174 | 162 | Open |
Product description
MEC 2000 / 3000 / 4000 – Simple and practical design
The reliability and strength of the MEC is the result of continuous design and manufacturing improvements accomplished during 40 years of deployments.
It’s simple and practical design made the MEC pumps the product of reference for agricultural and municipalities septic applications.
STANDARD FEATURES
• Forced lubrication, 4-ways valve, non-return check valve
• Available hoses connections: Ø 45 mm / Ø 60 mm / G 2”
• Thread for Overpressure valve: G 1”1/4
MEC is the most copied pump in the World
