Pump KPS
ВЕРСИИ

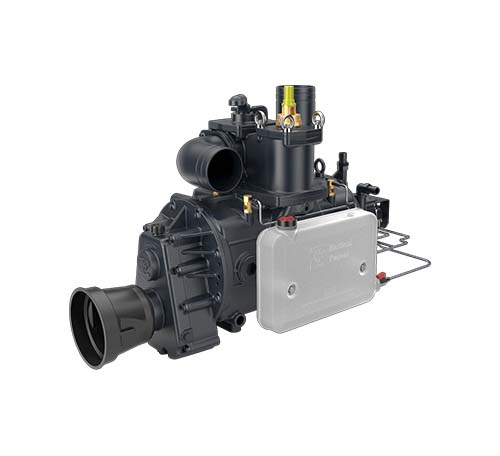

Version M-MA
С мультипликатором для привода от карданного вала на 540-1000 об/мин

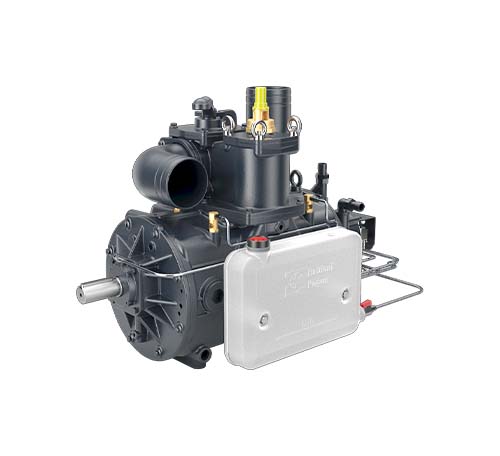

Version P
Гладкий вал со шпонкой

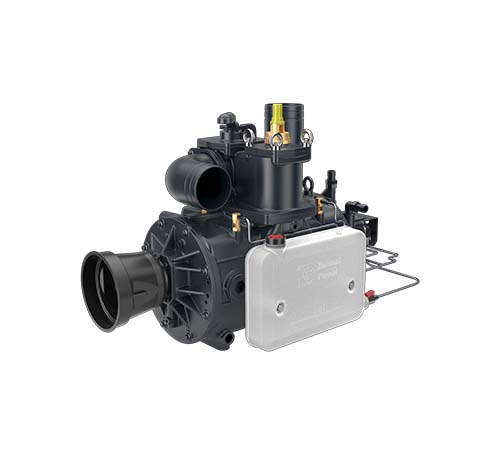

Version D
Привод от карданного вала на 1000 об/мин

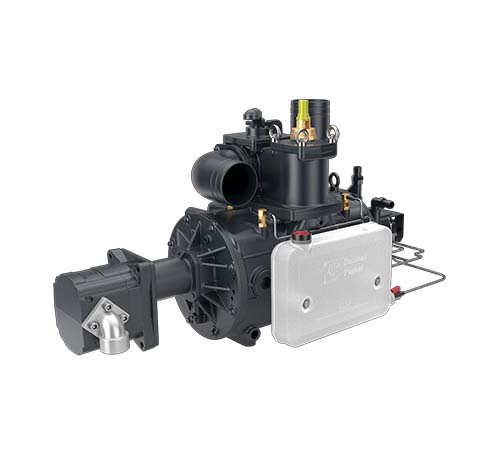

Version H
Привод от гидравлического двигателя

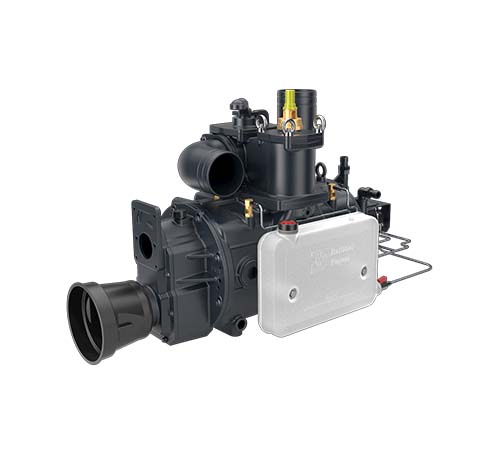

Version K/KA
Привод от гидравлического насоса на 540-1000 об\мин
ТЕХНИЧЕСКИЕ ДАННЫЕ
| Product | Geometrical capacity | Max rpm | Max abs pressure Bar (PSI |
Max vacuum % (inHg) |
Max continuous vacuum % (inHg) |
Power at max vacuum kW (HP) |
Weight kg | Brochure | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| m³/h | l/min | cfm | M-K | MA-KA | P/D/H | M-MA | P | D | H | K-KA | ||||||
| KPS 490 | 811 | 13520 | 477 | 600 | 1000 | 1400 | 2.5 (36) | 95% (28,5”) | 95% (28,5”) | 19 (25,5) | 221 | 205 | 205 | 242 | - | Open |
| KPS 550 | 916 | 15270 | 539 | 600 | 1000 | 1400 | 2.5 (36) | 95% (28,5”) | 95% (28,5”) | 22 (29,5) | 236 | 216 | 216 | 253 | 226 | Open |
| KPS 670 | 1117 | 18620 | 657 | 600 | 1000 | 1400 | 2.5 (36) | 95% (28,5”) | 95% (28,5”) | 25 (33,5) | 265 | 245 | 245 | 282 | 255 | Open |
ОПИСАНИЕ ТОВАРА
KPS
The KPS pump series features liquid cooled housing enabling continuous operation in vacuum and in pressure modes.
The KPS pump series if for applications where long time continuous non-stop operation is required (i.e. oil fields, combined vacuum trucks, industrial applications).
The KPS series is the ideal choice for professional users and contractors.
STANDARD FEATURES
On request, it is possible to have the KPS 490-550-670 ATEX pumps
Water-cooling and air injection cooling
