BLW

BLW
140

VERSÕES

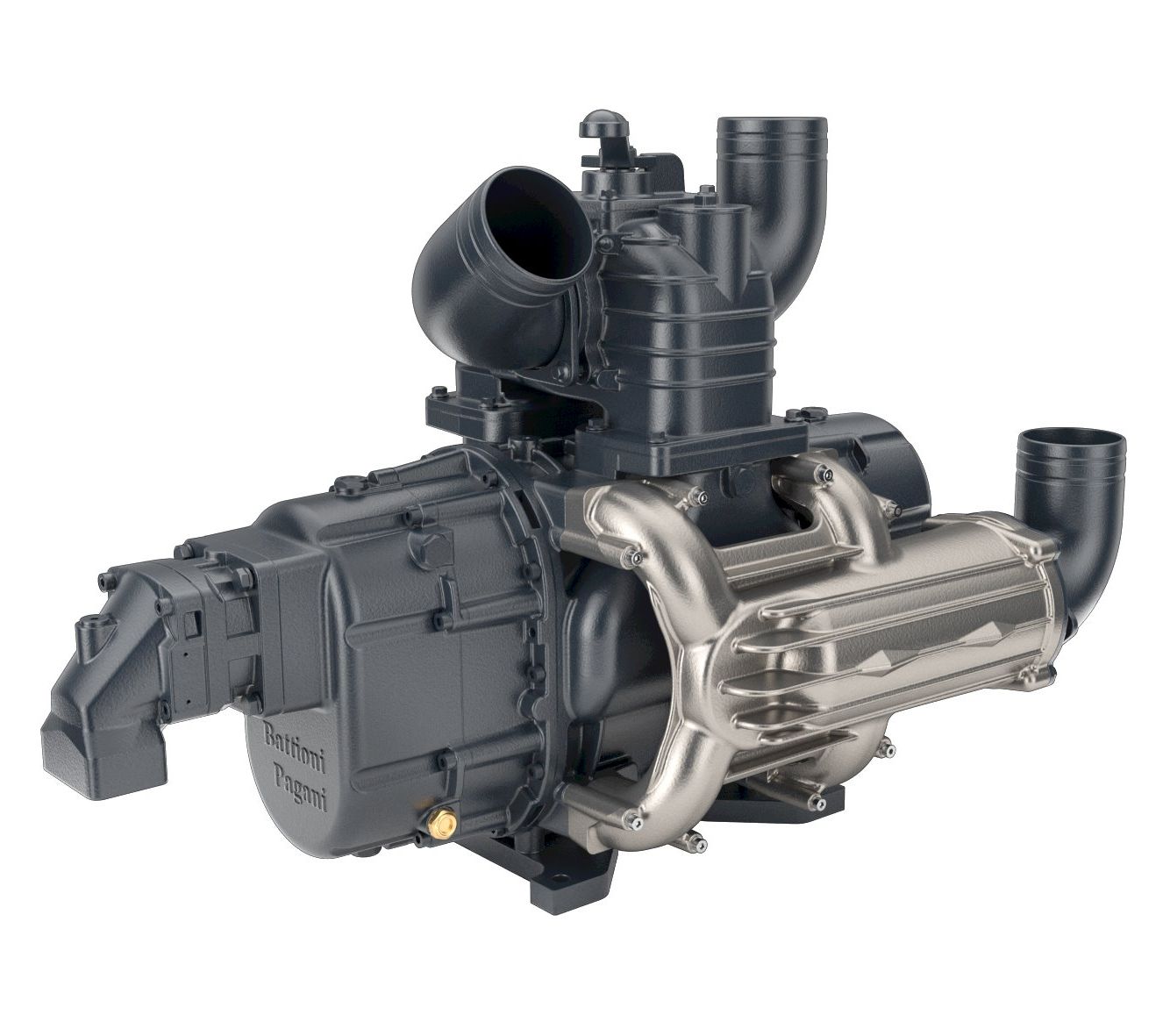

Version P

Version H

Version PM - BLW

With integrated multiplier gearbox

P-CH

with integrated and compact piston motor

DADOS TÉCNICOS

Model	Versions	QG	speed (rpm)	Vacuum														Pressure (bar abs)								Weight (kg)		SPL dB (A)	Brochure
				30%				60%				80%				Max Vacuum		1,5 bar				2,0 bar				Weight (kg)
				l/min	m3/h	cfm	Kw	l/min	m3/h	cfm	Kw	l/min	m3/h	cfm	Kw	bar	Kw	l/min	m3/h	cfm	Kw	l/min	m3/h	cfm	Kw	p	h
BLW 140	P/H	840 m3/h 14000 l/min 494 cfm	2500	6100	366	215	5	4600	276	162	8	1364	82	48	10	-0,8	10	5740	344	203	7	5340	320	189	13	140	150	78	Open
			3000	7400	444	261	6	6220	373	220	10	2824	169	100	13	-0,85	13	7100	7100	251	9	6400	384	226	16	140	150
			3500	8500	510	300	7	7480	449	264	11	4284	257	151	14	-0,87	15	8500	510	300	10	7850	471	277	18	140	150
			4000	9500	570	335	8	8700	522	307	13	5744	345	203	16	-0,88	18	9480	569	335	12	8850	531	313	22	140	150
			4800	11200	672	396	11	10300	618	364	16	8080	485	285	20	-0,9	22	11100	666	392	16	10500	630	371	27	140	150
BLW 210	P/H	1350 m3/h 22600 l/min 798 cfm	2000	9473	568	335	7	8240	494	291	13	3327	200	117	17	-0,8	17	9894	594	349	12	9295	558	328	21	140	150	78	Open
			2400	11985	719	423	9	9352	561	330	16	5839	350	206	21	-0,82	21	12406	744	438	13	11807	708	417	25	140	150
			2800	14497	870	512	11	11869	712	419	20	8351	501	295	25	-0,85	26	14918	895	527	16	14320	859	506	29	140	150
			3200	17009	1021	601	13	14381	863	508	23	10863	652	384	29	-0,87	31	17430	1046	616	19	16831	1010	594	35	140	150
			3600	19521	1171	689	16	16893	1014	597	26	3375	803	472	33	-0,9	36	19942	1197	704	22	19343	1161	683	40	140	150
BLW 270	P/H	1770 m3/h 29500 l/min 1040 cfm	2000	12742	765	450	10	9645	579	341	17	4299	258	152	22	-0,8	22	13238	794	467	15	12533	752	443	27	235	270	82	Open
			2400	16018	961	566	12	12921	775	456	22	6775	407	239	28	-0,82	29	16514	991	583	18	15809	949	558	33	235	270
			2800	19294	1158	681	15	16197	972	572	26	9051	543	320	33	-0,85	36	19790	1187	699	22	19085	1145	674	40	235	270
			3200	22570	1354	797	19	19473	1168	688	31	13327	800	471	39	-0,87	43	23066	1384	815	26	22361	1342	790	46	235	270
			3600	25486	1529	900	23	22749	1365	1365	37	16603	996	586	586	-0,9	50	26342	1581	930	31	25637	1538	905	56	235	270
BLW 300	P/H	2000 m3/h 33300 l/min 1177 cfm	2000	15065	904	532	12	10074	604	356	21	5499	330	194	28	-0,82	28	16100	966	569	18	13800	828	487	33	270	310	84	Open
			2400	19090	1145	674	14	13915	835	491	26	7015	421	248	34	-0,86	36	20010	1201	707	21	18170	1090	642	40	270	310
			2800	22655	1359	800	19	17250	1035	609	32	10350	621	366	40	-0,88	44	23575	1415	833	25	22080	1325	780	48	270	310
			3200	25990	1559	918	24	19550	1173	690	39	14145	849	500	47	-0,89	51	27025	1622	954	30	24840	1490	877	57	270	310
			3600	30130	1808	1064	29	24150	1449	853	45	17595	1056	621	54	-0,91	60	30360	1822	1072	37	28865	1732	1019	65	270	310
BLW 400	P/H	2570 m3/h 42800 l/min 1511 cfm	2000	18400	1104	650	16	12707,5	762	449	27	2300	138	81	35	-0,82	36	18400	1104	650	22	15295	918	540	43	270	310	84	Open
			2400	23575	1415	833	20	17250	1035	609	35	8050	483	284	43	-0,86	45	23000	1380	812	27	20993	1260	741	50	295	330
			2800	27899	1674	985	26	22057	1323	779	42	12420	745	439	52	-0,88	55	27600	1656	975	33	25507	1530	901	60	295	330
			3200	33821,5	2029	1194	33	28980	1739	1023	50	21275	1277	751	62	-0,91	67	33350	2001	1178	40	31591	1895	1116	73	295	330
			3600	37421	2245	1322	40	32900	1974	1162	56	26910	1615	950	71	-0,93	78	37375	2243	1320	55	34270	2056	1210	84	295	330
BLW 185	PM	1180 m3 /h - 19600 L/min 692 cfm	1200	16580	995	586	13	14021	841	495	22	10590	635	374	28	-0,87	30	16990	1019	600	18	16400	984	579	34	225	-	80	Open
BLW 185	PM	1180 m3 /h 19600 L/min 692 cfm	1200	16580	995	586	13	14021	841	495	22	10590	635	374	28	-0,87	30	16990	1019	600	18	16400	984	579	34	225	-	80	Open
BLW 210	PM	1350 m3 /h 22600 L/min 798 cfm	1200	19521	1171	689	16	16893	1014	597	26	13375	803	472	33	-0,88	36	19942	1197	704	22	19343	1161	683	40	225	-	80	Open
BLW 255	PM	1530 m3 /h 25500 L/min 900 cfm	1200	22000	1320	777	19	18980	1139	670	33	11550	693	408	38	-0,90	42	22480	1349	794	25	21800	1308	770	45	250	-	82	Open
BLW 270	PM	1770 m3 /h 29500 L/min 1040 cfm	1200	25486	1529	900	23	22749	1365	803	37	18603	1116	657	45	-0,90	50	26342	1581	930	31	25637	1538	905	56	250	-	82	Open
BLW 300	PM	2000 m3 /h 33300 L/min 1177 cfm	1200	30130	1809	1064	29	24150	1450	853	45	17595	1056	621	54	-0,91	54	30360	1822	1072	37	28865	1733	1019	65	305	-	84	Open
BLW 355	PM	2220 m3 /h - 37000 L/min 1306 cfm	1200	33700	2023	1190	31	28500	1711	1006	50	21000	1261	742	61	-0,92	66	33000	1981	1165	39	31500	1891	1112	70	330	-	84	Open
BLW 400	PM	2570 m3 /h 42800 L/min 1511 cfm	1200	37421	2246	1322	40	32900	1975	1162	56	26910	1615	650	71	-0,93	78	37375	2243	1320	55	34270	2057	1210	84	330	-	84	Open

DESCRIÇÃO PRODUTO

BLW 140

The BLW 140 does not require either a liquid cooling system nor lubrication.

The discharged air into the atmosphere is clean of pollutants such as oil and resins.

STANDARD FEATURES:

Compact design: integrated 4 Way valve, check valve and non-return valve on air injection system;
Ready for vacuum relief valve and integrated internal final filter
Piston rings sealing

Oil free

Pump BLW
